2203001 SUMMA LODESTAR Smart Control Heating Down Vest
Keywords
Intelligent heating · Lightweight down insulation · USB-control module · Smart-temperature regulation · Work & outdoor hybrid
1. Basic Information
- ensp;Product Code: 2203001
- ensp;Series: L = Lifestyle / Smart Heated
- ensp;Cost Anchor: USD $36–45 (FOB base specification, estimated)
- ensp;Compliance: OEKO-TEX® Standard 100 Class II; CE / RoHS (heating system components); EN ISO 13688 (general workwear)
- ensp;Positioning: Hybrid smart-down vest integrating lightweight insulation and USB-powered heating control, designed for cold-weather outdoor work, commuting, and technical leisure use.
2. Application Scenarios
-Industrial or field workers in cold environments
-Logistic and warehouse personnel in temperature-variable areas
-Outdoor commuting, driving, and light-duty field service
-Corporate gift / technology-enhanced uniform programs
3. Technical Highlights
- ensp;3-zone carbon fiber heating elements (chest & back) with 3-level smart temperature control (low/medium/high)
- ensp;Power source: 5V/2A USB interface (Type-A; power bank not included)
- ensp;Intelligent temperature feedback and automatic power-off safety circuit
- ensp;Lightweight 90/10 down insulation providing warmth even without heating
- ensp;Wind-resistant and water-repellent 20D nylon shell with DWR finish
- ensp;Heating system detachable for washing and maintenance
- ensp;Independent power-module removal via concealed inner zipper
- ensp;Soft-touch taffeta lining for comfort and efficient heat diffusion
4. Materials & Trims
-Shell: 100% nylon 20D down-proof fabric, C0/PFC-free DWR
-Insulation: 90/10 white duck down, 120–140 g fill (RDS certified)
-Lining: 210T polyester taffeta, anti-static treated
-Heater: 3-zone carbon-fiber heating pads, 5V/2A USB connection
-Zippers & Hardware: YKK® #5 CF zipper; internal wiring zipper; low-profile button control panel (LED indicator)
-Thread: Polyester high-tenacity core-spun
-Logo Placement: Left chest (SUMMA metallic “S”) + inner label for circuit module

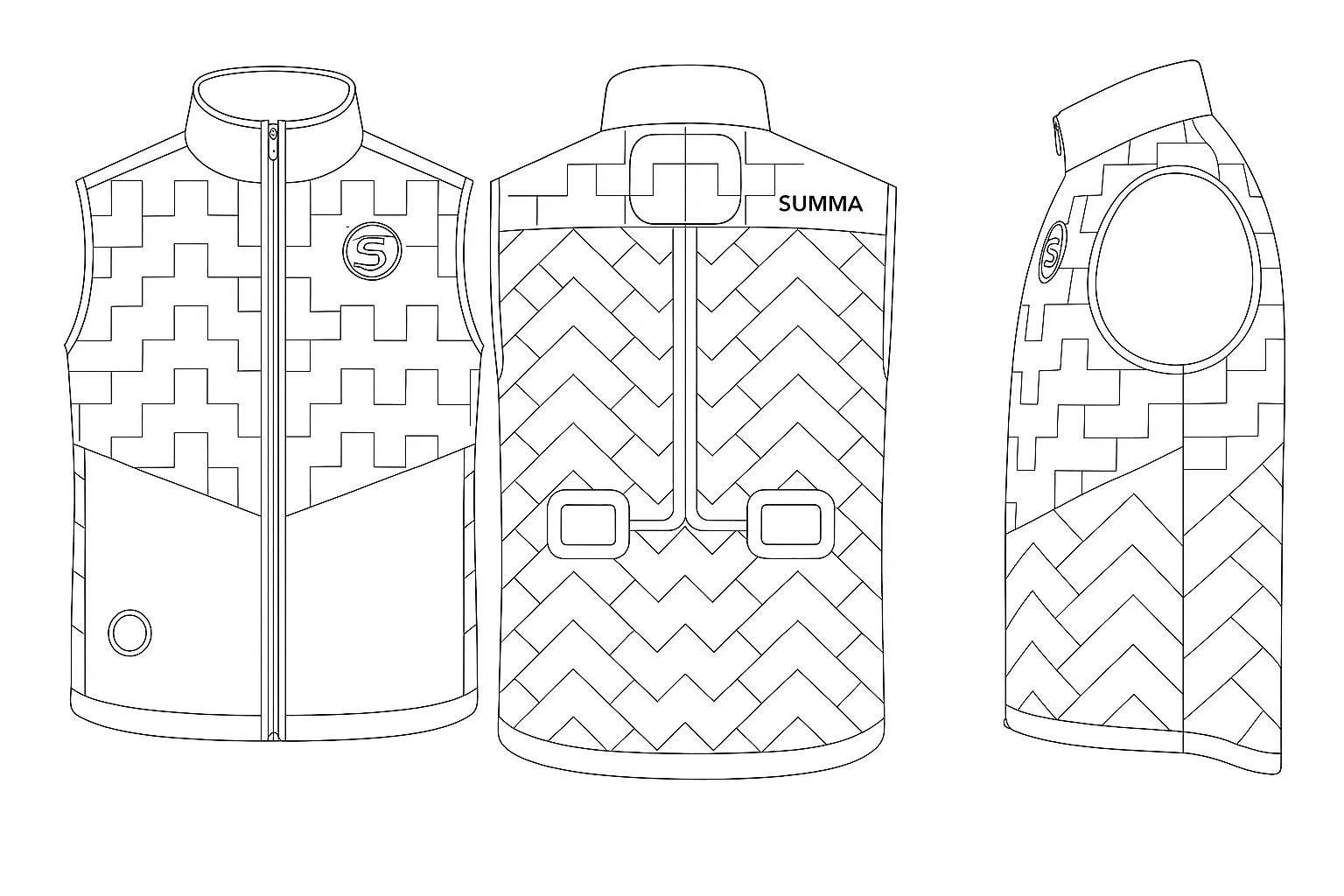

5. Structure & Functional Design
- ensp;Silhouette: Regular fit; sleeveless vest style; ergonomic armholes for mobility
- ensp;Closure: Center-front zipper with internal wind guard
- ensp;Control Interface: Chest-mounted LED switch (3 heat levels: 40°C / 45°C / 50°C ±3°C)

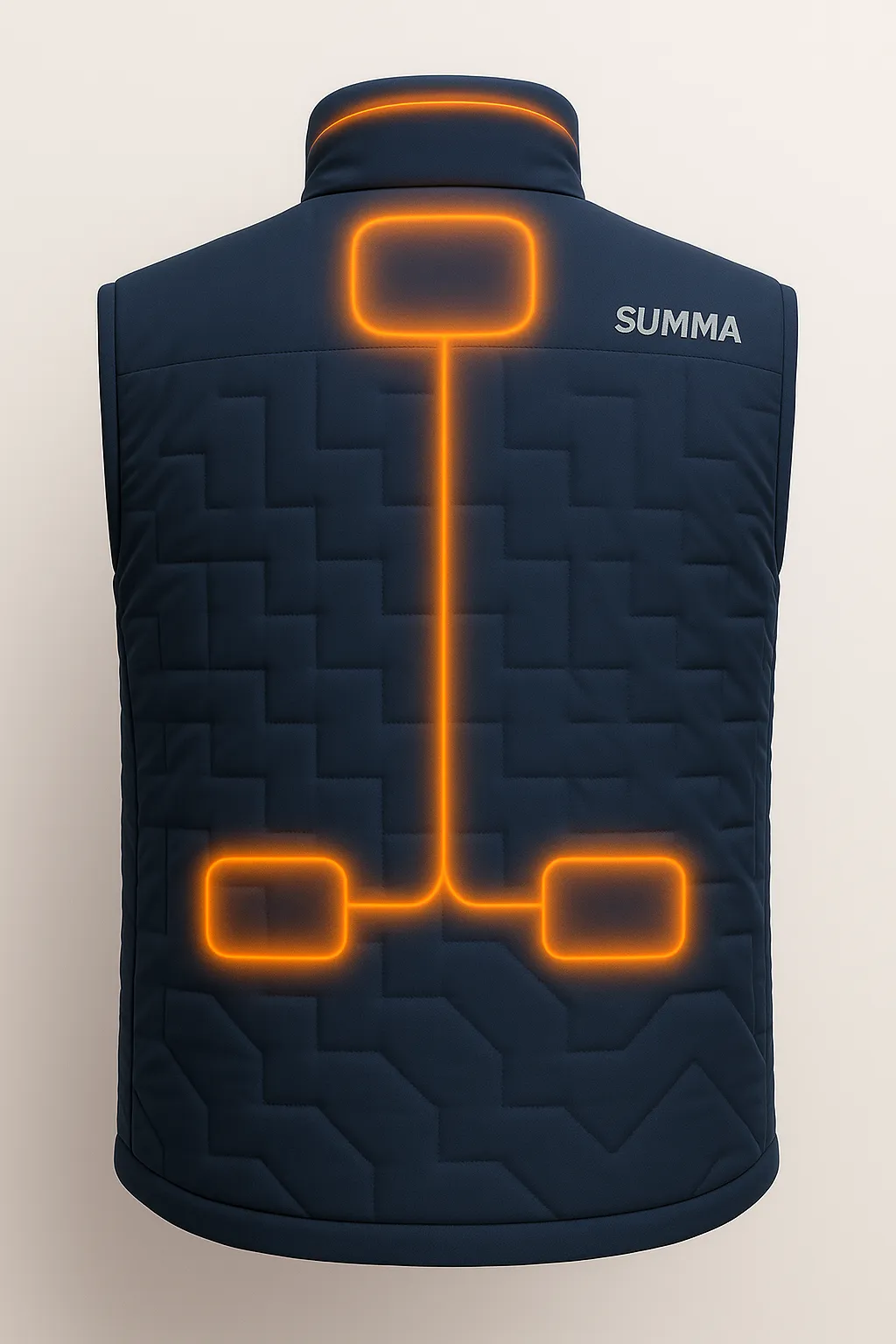

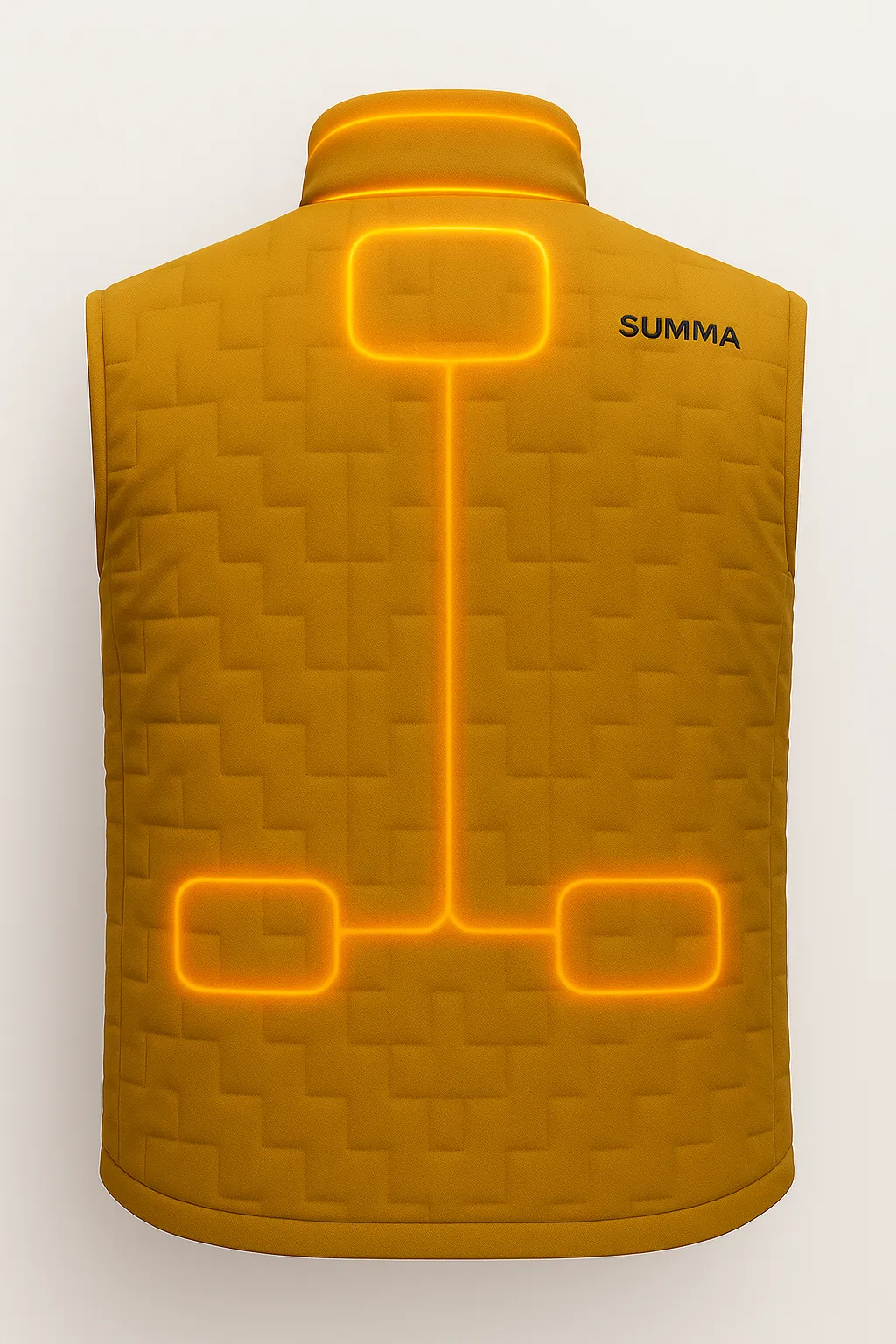

- ensp;Heating Zones: Left chest, right chest, and upper back
- ensp;Pockets: Two hand pockets + one concealed inner pocket for power-bank storage
- ensp;Safety: Auto shut-off after 3 hours; short-circuit and overheat protection
- ensp;Maintenance: Detachable power cable; machine washable after removal of module
6. Market Benchmark References
-Milwaukee / Gobi Heat: Smart workwear with USB heat systems
-Bosch Heated Gear: Industrial-grade control reliability
-Uniqlo HeatTech / Xiaomi Heated Vest: Lightweight consumer hybrid examples
7. Selling Messages
- ensp;Intelligent heating · 3-zone warmth with smart control
- ensp;Lightweight down comfort · Wearable independently or under shell
- ensp;USB-powered versatility · Compatible with standard power banks
- ensp;Safe, washable, and energy-efficient design
- ensp;Ideal for professional and leisure cold-weather use
8. Function – Design – Validation
| Function | Design | Validation |
|---|---|---|
| Smart Heating | 3 carbon-fiber zones; LED 3-level control | Temperature stability ±3°C; ≥100 heat cycles |
| Thermal Insulation | 90/10 down fill (120–140 g) | EN ISO 11092 thermal resistance (Rct) |
| Electrical Safety | 5V/2A low-voltage USB system | CE / RoHS compliance; auto shut-off |
| Comfort & Mobility | Lightweight nylon shell; ergonomic armholes | Wear trials; motion range verification |
| Maintenance | Detachable module & wiring | Machine-wash durability 20+ cycles |
9. Retro-Reflective Area (M size example)
Not applicable — the LODESTAR vest is not a hi-vis garment; optional reflective piping (~180 cm²) can be applied for enhanced low-light visibility.
10. Compliance & Quality Assurance
-Material Compliance: All fabrics and trims must comply with OEKO-TEX® Standard 100 Class II; electronic components must meet CE and RoHS requirements.
-Testing & Performance: Down fill power, heating stability, insulation retention, wash durability, and electrical safety per EN ISO/IEC/AATCC standards.
-Workmanship Standards: Stitch density, seam allowances, and wiring integrity must meet international workwear and electronics-embedded apparel standards.
-Labels & Care: Must include size, supplier, production date, material composition, and ISO 3758 care symbols; electronic care instructions separately attached.
-Packaging: Each vest individually polybagged with protective wiring wrap; cartons labeled with SKU, size, color, origin, PO number, and barcode.
-QA Documentation: Supplier must provide OEKO-TEX®, CE, RoHS, and RDS down-traceability certificates, plus batch QA reports, prior to shipment.
